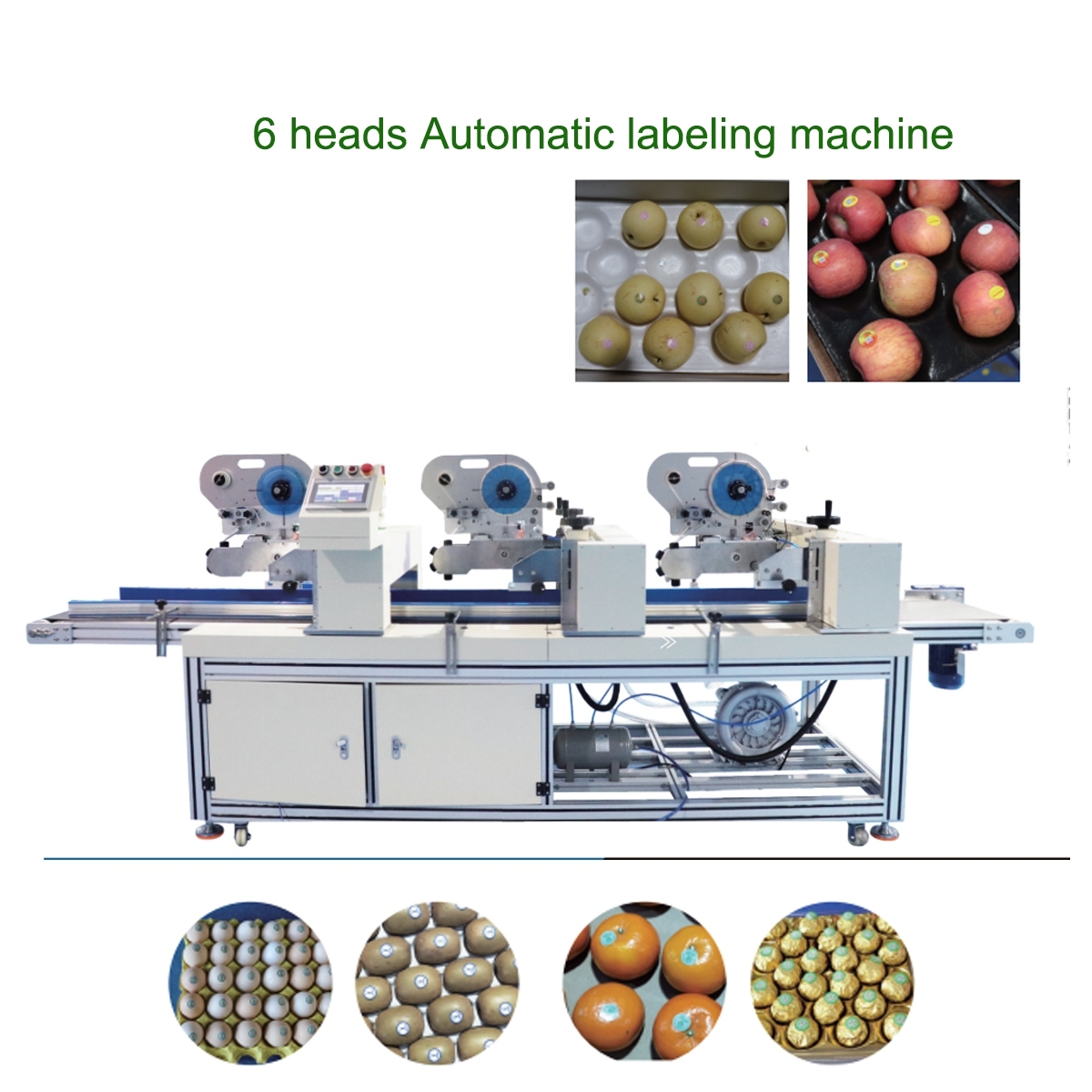

The first domestic research and development of fruit high - speed and flexible labeling machine and put into operation successfully . Break the monopoly of foreign countries
and reduce the cost of machine use and label . Speeds 180-240/min.
◆Elastic air nozzle: automatically adapt to different fruit labeling surfaces
◆Flexible and non-destructive fast labeling: Rotary air pressure suction and pressure can quickly complete
the entire labeling action Intelligent control: labeling everything, fine debugging
◆Universal use of talent: roll labels made of Chinese national standard, no Special order is required to
reduce label cost by 50%
◆Flexible collocation: a single set of headers is simple and easy to install, and can be matched with standard
sets at will
◆Intelligent control: no labeling, fine debugging
|
Model |
ATL-6 |
|
|
Width of base paper/label |
22cm |
|
|
Head distand |
≥100mm |
|
|
Labeling Heads |
1-6 pcs optional |
|
|
Head arrangement |
Base on Product spacing |
|
|
speed |
100-240pcs/min |
Base on products |
|
Label accuracy |
3-5mm |
|
|
Inner diameter of paper core |
76mm |
|
|
Outer diameter of label holder |
280mm |
|
|
Suitable products diameter |
≥30mm |
